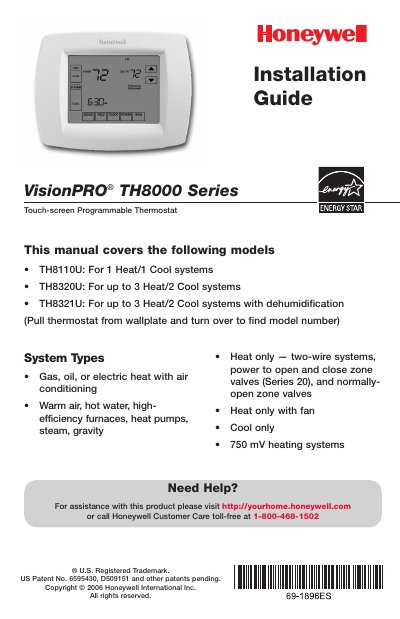

This is an installation guide that provides instructions for installing the VisionPRO® TH8000 series touch-screen programmable thermostat produced by Honeywell International Inc., and lists the compatible system types.
This guide provides step‑by‑step instructions for installing Honeywell VisionPRO TH8000 Series touch‑screen programmable thermostats. It includes wall‑plate removal, mounting, power connections, and safety warnings for qualified technicians.
The document also details wiring diagrams for conventional and heat‑pump systems, installer setup options, and technical specifications such as temperature ranges, voltage, current, and physical dimensions.
| Heating temperature range | 40 °F to 90 °F (4.5 °C to 32 °C) |
|---|---|
| Cooling temperature range | 50 °F to 99 °F (10 °C to 37 °C) |
| Operating voltage (thermostat terminals) | 20‑30 VCA |
| Current draw (heating) | 0.02 A to 1.0 A |
| Current draw (cooling) | 0.02 A to 0.6 A |
| Physical dimensions | 4‑9/16" H × 6" W × 1‑3/8" D |
Visit http://yourhome.honeywell.com or call Honeywell Customer Care toll‑free at 1‑800‑468‑1502.
