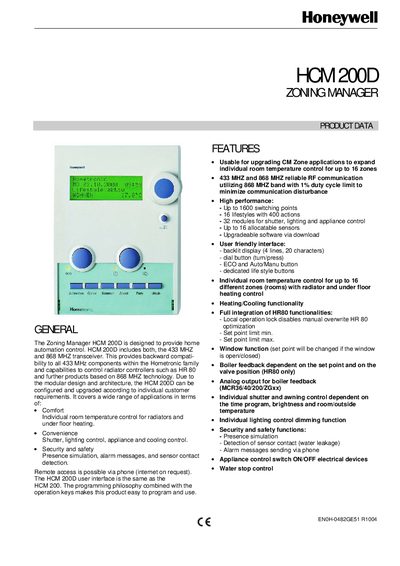

HCM 200D Zoning Manager product data, which provides home automation control function, supports 433 MHz and 868 MHZ RF technology, can control various home appliances and support remote access.
The Zoning Manager HCM 200D is a home‑automation controller that supports both 433 MHz and 868 MHz RF communication, allowing integration with radiator controllers, under‑floor heating, shutters, lighting, and other appliances. It offers up to 16 zones, 1600 switching points, and a backlit 4‑line display for easy programming.
The manual details the device’s electrical specifications, environmental limits, and RF requirements, and includes application examples for heating, convenience, and security functions. It also explains how to upgrade existing CM Zone systems and configure boiler feedback signals.
| Batteries | 3 × AA, 1.5 V each |
|---|---|
| Display | Backlit, 4 lines, 20 characters per line |
| Operating temperature | up to 40 °C |
| Storage temperature | -20 °C to +70 °C |
| IP class | IP30 |
| RF communication range | max. 30 m |
| RF bands | 868 MHz (1 % duty), 433 MHz (10 % duty) |
The HCM 200D can control up to 16 individual zones.
It includes both a 433 MHz and an 868 MHz transceiver.
The RF communication range is up to 30 m in a residential environment.
