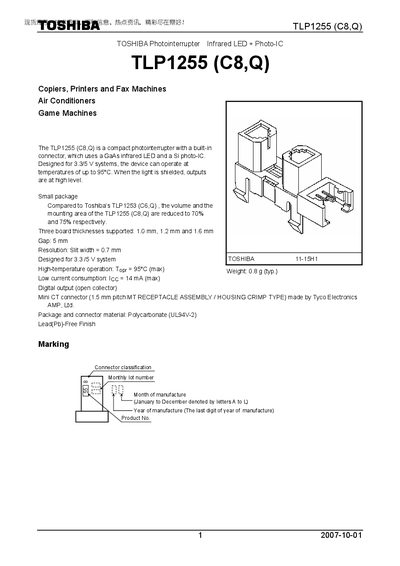

The TLP1255 (C8,Q) is a compact photointerrupter with a built-in connector, which uses a GaAs infrared LED and a Si photo-IC. Designed for 3.3/5 V systems, the device can operate at temperatures of up to 95°C.
The TLP1255 is a compact photointerrupter with a built‑in connector, using a GaAs infrared LED and a Si photo‑IC. It is designed for 3.3 V/5 V systems and is suitable for copiers, printers, fax machines, air conditioners, and game machines.
The document details absolute maximum ratings, operating ranges, optical and electrical characteristics, recommended Mini CT connector, mechanical dimensions, and precautions for reliable integration in electronic equipment.
| Supply voltage (Vcc) | 2.97 V – 5.5 V |
|---|---|
| Output voltage (Vo) | up to 13.2 V |
| Operating temperature range | -30 °C to 95 °C |
| Gap | 5 mm |
| Slit width | 0.7 mm |
| Typical weight | 0.8 g |
The device operates with a supply voltage between 2.97 V and 5.5 V.
A Mini CT connector (1.5 mm pitch, receptacle assembly / housing crimp type) is recommended.
The TLP1255 can operate up to 95 °C (max).
The typical weight of the component is 0.8 g.
