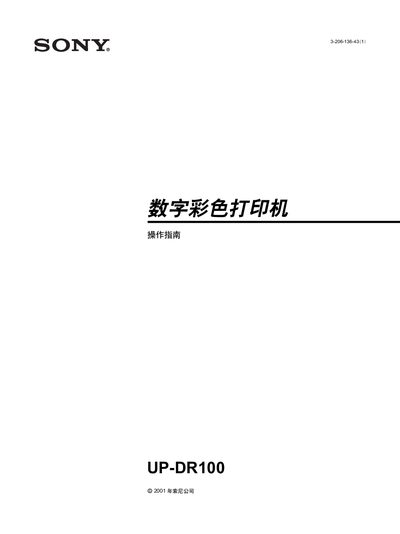

Sony UP-DR100 Digital Color Printer Operating Instructions

About this manual

The Sony UP-DR100 is a dye‑sublimation digital color printer offering high‑quality output with a 334 dpi resolution and the ability to reproduce up to 16.7 million colors. The manual provides step‑by‑step procedures for installing paper and ribbon, connecting the printer via SCSI, and adjusting gray balance for accurate color reproduction.

Safety precautions, DIP‑switch configuration for SCSI ID, and troubleshooting tips are covered to ensure reliable operation. The document also lists supplied accessories, explains the function of front‑panel indicators, and details maintenance tasks such as cleaning the thermal head and replacing the ink ribbon. This manual is written in Chinese.

What's inside

• Introduction
• Accessories Supplied
• Installation
• Connections
• Operation
• Adjusting Gray Balance
• DIP Switch Settings
• Safety Precautions
• Troubleshooting
• Specifications

Specifications

Frequently asked questions

What does the alarm light indicate?

The alarm light is green during normal operation and turns red when an error such as a paper jam occurs.

How do I adjust the gray balance?

Press the CALIBRATION (标定) key to adjust the gray balance.
