The NLP250 Series is a single output embedded power supply for business-critical continuity. It features active PFC and is compliant with EN61000-3-2. It has a main channel power of 250W with forced air cooling, making it suitable for 1U applications. Other features include a low profile design, optional cover, 5V standby output, 12V fan output, integrated ORing diode, active current sharing, integrated control and monitoring features, overcurrent, overvoltage and overtemperature protection. The power supply is also compliant with EN55022-B conducted noise standard and RoHS. It comes with a 2 year warranty.
The NLP250 Series is a single‑output embedded power supply offering up to 250 W on the main channel with forced‑air cooling. It includes active PFC, EN61000‑3‑2 compliance, optional cover, standby 5 V output, 12 V fan output, integrated ORing diode, and active current sharing. Protection features cover over‑current, over‑voltage, and over‑temperature, and the unit meets EN55022‑B noise and RoHS standards.

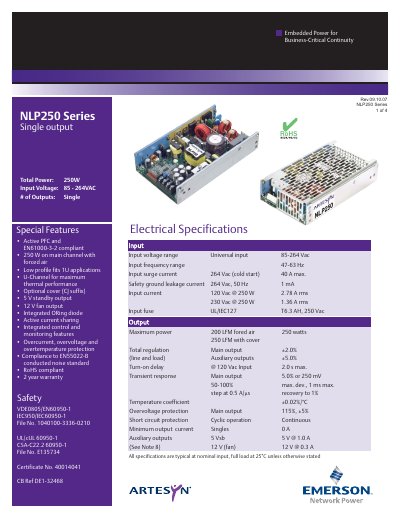

The device operates from a universal input range of 85‑264 VAC, supports 1U low‑profile installations, and provides various auxiliary outputs (5 V sb, 12 V fan). Mechanical drawings, pin‑out details, and derating curves are included for system integrators and professional installers.
