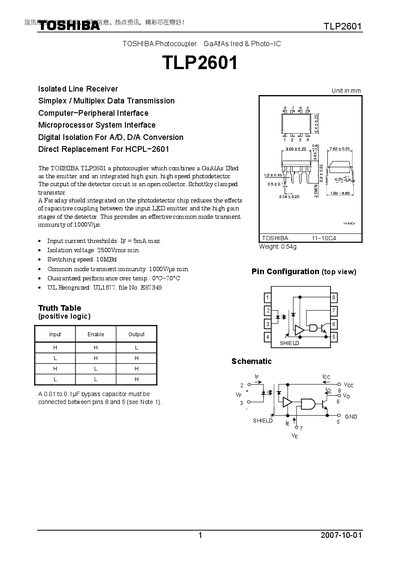

TLP2601 is a photocoupler from TOSHIBA that combines a GaAℓAs IRed as the emitter and an integrated high gain, high-speed photodetector. It features an isolated line receiver, simplex/multiplex data transmission, computer-peripheral interface, microprocessor system interface, and digital isolation for A/D, D/A conversion. It is a direct replacement for HCPL−2601.
The TLP2601 is a Toshiba GaAs infrared photocoupler that combines an LED emitter with a high‑gain photodetector. It offers an open‑collector output, a Faraday shield for reduced capacitive coupling, and a common‑mode transient immunity of 1000 V/µs.
The document lists recommended operating conditions, absolute maximum ratings, switching characteristics, and test circuits. It also includes handling notes, isolation voltage specifications, and restrictions on product use for safety‑critical applications.
| Input low‑level current threshold (I_L) | 5 mA max |
|---|---|
| Isolation voltage | 2500 Vrms min |
| Operating temperature range | 0 °C to 70 °C |
| Output collector power dissipation | 40 mW |
The device is rated for a minimum isolation voltage of 2500 Vrms.
The low‑level input current threshold is specified as 5 mA maximum.
Yes, the device is UL recognized under UL1577.
