This product is a photocoupler, which consists of a photo-transistor and two GaAs infrared emitting diodes, which are inverse parallel connected in a six-lead plastic DIP package. It has the characteristics of high isolation voltage, high current transfer ratio and high reliability.

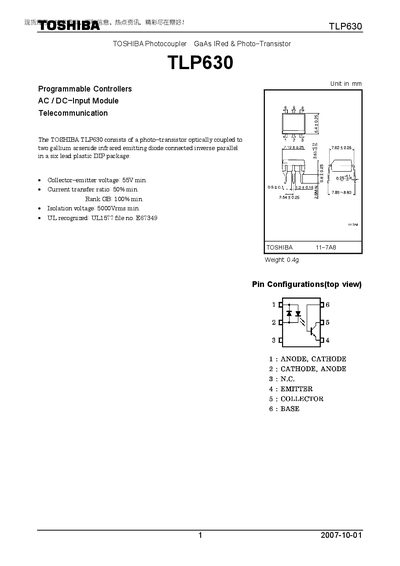

The TLP630 is a GaAs infrared emitting‑diode photocoupler with a photo‑transistor output, housed in a six‑lead plastic DIP package. The document lists pin configurations, mechanical dimensions, and the intended general‑electronics applications such as computers, office equipment, and industrial robotics.
Key electrical specifications are given, including absolute maximum ratings, recommended operating conditions, and detailed characteristics such as forward voltage, collector‑emitter voltage, isolation voltage, current transfer ratio, and switching times. The datasheet also outlines restrictions on product use, emphasizing that the device must not be employed in safety‑critical or high‑reliability systems like medical or aerospace equipment.
