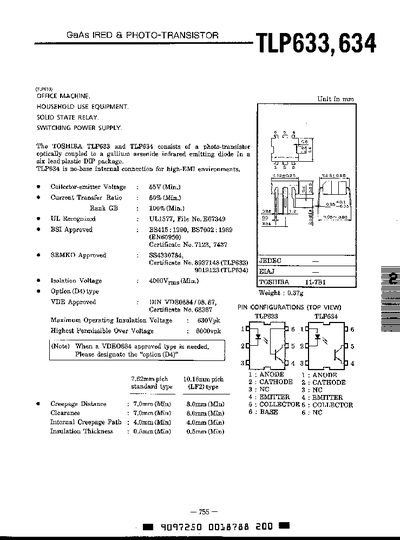

The Toshiba TLP633 and TLP634 are solid‑state relay optocouplers that combine a gallium arsenide infrared emitting diode with a photo‑transistor in a six‑lead DIP package. They are intended for office machines, household equipment and switching power supplies.
The devices provide a collector‑emitter voltage rating of 55 V, isolation voltage up to 4000 Vrms, forward current of 40 mA and power dissipation of 150 mW. Recommended supply voltage is 5–24 V and they operate from –55 °C to 150 °C storage temperature.
| Collector‑Emitter Voltage (VCEO) | 55 V |
|---|---|
| Forward Current (Ip) | 40 mA |
| Power Dissipation (Pe) | 150 mW |
| Storage Temperature Range | -55~150 °C |
The collector‑emitter voltage rating is 55 V.
The forward current rating is 40 mA.
The recommended supply voltage is 5 V to 24 V.
