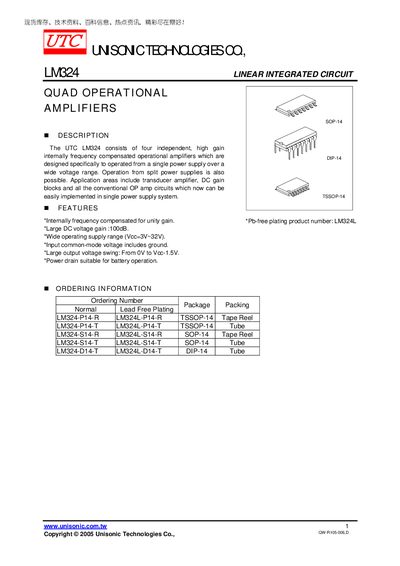

LM324 is a quad operational amplifier designed by Unisonic Technologies Co., LTD. It can work in a wide voltage range from a single supply or from split power supplies. It is widely used in transducer amplifier, DC gain blocks and all the conventional OP amp circuits.
The UTC LM324 is a quad operational amplifier designed for single‑supply operation over a wide voltage range (3 V – 32 V) and also supports split supplies. It offers high DC voltage gain (100 dB), large output swing, low power drain for battery use, and includes internal frequency compensation for unity‑gain stability.
The document includes a description of features, ordering numbers for various package types, pin descriptions, block diagram, absolute maximum ratings, detailed electrical characteristics, and typical performance graphs. It also contains a disclaimer and copyright information from Unisonic Technologies.
| DC voltage gain | 100 dB |
|---|---|
| Operating supply range | 3 V – 32 V |
| Input common‑mode voltage range | Includes ground |
| Output voltage swing | 0 V to VCC‑1.5 V |
| Typical input offset current | 50 nA |
| Typical input bias current | 250 nA |
| Typical CMRR | 75 dB |
| Typical PSRR | 100 dB |
| Short‑circuit current to ground | 60 mA |
The LM324 operates from 3 V up to 32 V.
The LM324 contains four independent operational amplifiers.
The typical PSRR is 100 dB.
