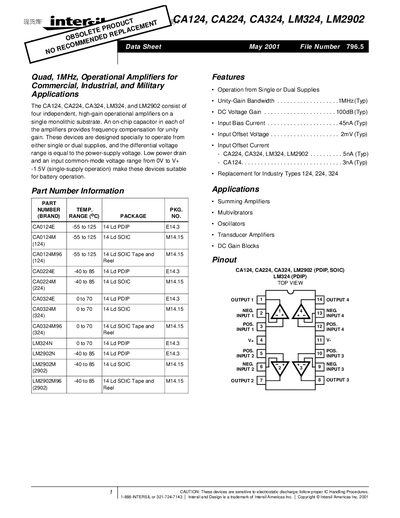

CA124, CA224, CA324, LM324, LM2902 are four independent high-gain operational amplifiers suitable for commercial, industrial, and military applications. They can be powered by single or dual supplies, and have low power consumption and a wide input common-mode voltage range.
The CA124, CA224, CA324, LM324 and LM2902 are quad, 1 MHz operational amplifiers designed for commercial, industrial, and military applications. They operate from single or dual supplies, with a differential voltage range equal to the supply voltage and low power drain suitable for battery operation.
Key specifications include a unity‑gain bandwidth of 1 MHz, DC voltage gain of 100 dB, input bias current of 45 nA, and input offset voltage of 2 mV. The devices are offered in PDIP and SOIC packages, with detailed mechanical dimensions and thermal ratings provided.
| Maximum Junction Temperature (Die) | 175 °C |
|---|---|
| Maximum Output Current | ≈ 40 mA |
The maximum output current is approximately 40 mA.
Both PDIP (dual‑in‑line) and SOIC (small‑outline) packages are offered.
