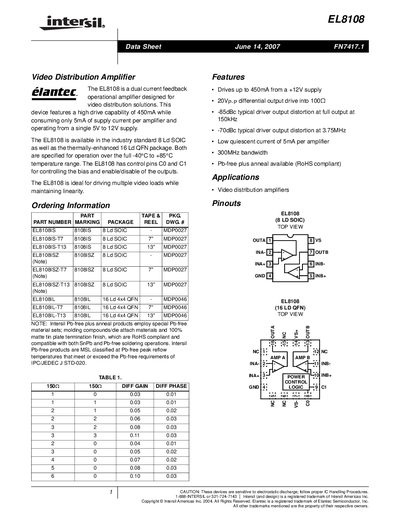

EL8108 is a video distribution amplifier from Intersil with high driving capability and low quiescent current.
The EL8108 is a dual current‑feedback operational amplifier designed for video distribution solutions. It delivers high drive capability while consuming low quiescent current and operates from a single 5 V to 12 V supply.
Key specifications include a 450 mA output drive, 300 MHz bandwidth, and differential output of up to 20 V p‑p into 100 Ω loads. The device is offered in standard 8‑lead SOIC and thermally‑enhanced 16‑lead QFN packages, both rated for –40 °C to +85 °C operation.
| Maximum Output Current | 450 mA per amplifier |
|---|---|
| Quiescent Current | 5 mA per amplifier |
| Supply Voltage Range | 5 V to 12 V (single supply) |
| Bandwidth | 300 MHz |
| Differential Output Drive | 20 V p‑p into 100 Ω |
Each amplifier can drive up to 450 mA.
It operates from a single 5 V to 12 V supply.
The device provides a bandwidth of 300 MHz.
It is available in an 8‑lead SOIC and a 16‑lead QFN package.
