This is a high-end smart power switch with load dump and reverse battery protection, negative voltage clamp at output, short-circuit protection, current limitation, thermal shutdown, diagnostic feedback, open load detection, CMOS compatible input, electrostatic discharge (ESD) protection, ground loss and Vbb loss protection, overvoltage protection and other functions. It is suitable for 12V and 24V DC grounded loads of µC compatible power switch, and can replace electromechanical relays and discrete circuits.

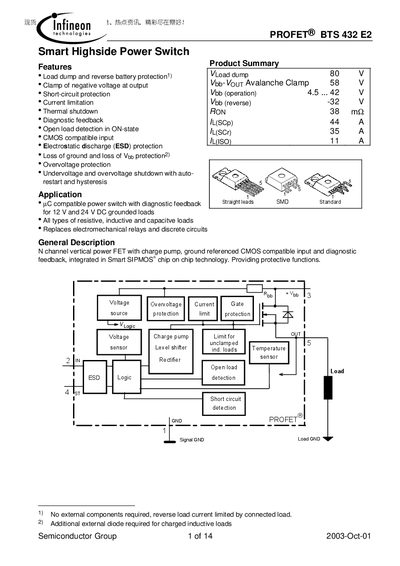

The PROFET® BTS 432 E2 is an N‑channel vertical power FET with integrated charge pump, CMOS‑compatible input and diagnostic feedback. It provides load‑dump, reverse‑battery, short‑circuit, over‑voltage, under‑voltage and ESD protection for 12 V and 24 V DC loads, eliminating the need for external components in many applications.
The datasheet lists electrical characteristics, maximum ratings, pin functions, protection features and mechanical dimensions for the TO‑220AB/5 package, enabling designers to integrate the device into power‑switching circuits for resistive, inductive or capacitive loads.
| Maximum power dissipation (DC) | 125 W |
|---|---|
| Operating temperature range | -40 °C to +150 °C |
| Input voltage range | -0.5 V to +6 V |
| Package | TO‑220AB/5 |
It is supplied in a TO‑220AB/5 package.
The device operates from –40 °C up to +150 °C.
