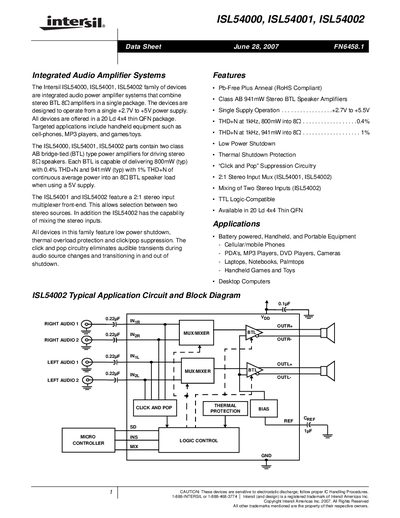

The Intersil ISL54000, ISL54001, ISL54002 are integrated audio power amplifier systems that combine stereo BTL 8Ω amplifiers in a single package
The Intersil ISL54000, ISL54001 and ISL54002 family are integrated audio power amplifier systems that combine two bridge‑tied load (BTL) stereo amplifiers in a single 20 Ld 4×4 thin QFN package. They operate from a single +2.7 V to +5 V supply and deliver up to 941 mW continuous average power into an 8 Ω speaker with 0.4 % THD+N.
Key features include low‑power shutdown, thermal overload protection, click‑and‑pop suppression, a 2:1 stereo input multiplexer (ISL54001/02) and mixing capability on the ISL54002. The devices are RoHS‑compliant, offered in tape‑and‑reel, and intended for handheld equipment such as cell phones, MP3 players and portable games.
| Supply Voltage Range | +2.7 V to +5.5 V |
|---|---|
| THD+N (1 kHz, 800 mW) | 0.4 % |
| Package | 20 Ld 4×4 Thin QFN |
| Number of Channels | 2 bridge‑tied stereo channels |
The devices operate from a single +2.7 V to +5.5 V supply.
The total harmonic distortion plus noise is 0.4 % THD+N.
The family provides two bridge‑tied load (BTL) stereo channels.
