This document describes a power supply product with an output power of 5 watts, featuring high voltage accuracy, good load regulation, overload and short circuit protection, etc.

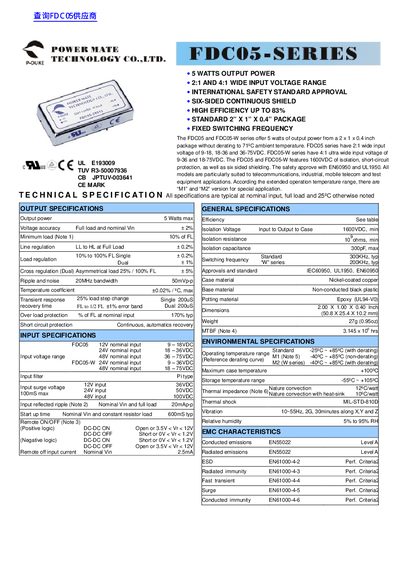

The FDC05 and FDC05‑W series provide 5 W of output power in a compact 2" × 1" × 0.4" package. They support 2:1 (9‑18 V, 18‑36 V, 36‑75 V) or 4:1 ultra‑wide input voltage ranges, achieve up to 83 % efficiency, and feature 1600 VDC isolation, short‑circuit protection and six‑sided shielding.
The series complies with EN60950, UL1950 and other safety standards. Options include optional heat‑sink (P/N 7G‑0020A) and selectable ON/OFF control logic (positive or negative). Two versions, M1 and M2, extend the operating temperature range, with M2 covering –40 °C to +85 °C.
| Maximum output power | 5 W |
|---|---|
| Efficiency | up to 83 % |
| Package size | 2" × 1" × 0.4" |
| MTBF | 3.145 × 10⁶ h |
| Operating temperature (M2 version) | -40 °C to +85 °C |
The series can deliver up to 5 W of output power.
A heat sink is optional; part number 7G‑0020A can be added if needed.
Yes, the ON/OFF control can be ordered with positive or negative logic using the appropriate suffix.
