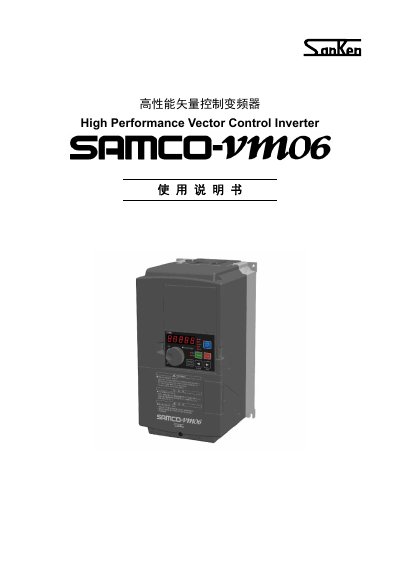

This manual introduces the features and usage of the Sanken High Performance Vector Control Inverter, including safety precautions, product identification and precautions, installation, wiring, operation, maintenance and inspection.
This manual covers all aspects of using the Sanken VM06 high‑performance vector control inverter. It begins with detailed safety symbols and precautions, explains product verification, and guides the installer through proper mounting, wiring, and connection of peripheral devices. The document also describes the operation panel, control circuit terminals, and functional codes, as well as communication options such as SANKEN protocol, Modbus‑RTU, and PROFIBUS.
Further sections address protection functions, error handling, fault analysis, routine maintenance, and inspection procedures. Technical specifications, environmental limits, dimensions, and recommended optional accessories are listed at the end, helping users to select appropriate components and ensure reliable long‑term operation. This manual is written in Chinese.
| DCM1 total current | <100 mA |
|---|---|
| DCM2 input resistance | ≈6.6 kΩ |
| Power supply output voltage | DC48 V |
| Digital output load capacity | DC48 V, 50 mA |
The manual uses the symbol [危险] to mark items that could cause serious personal injury or death if ignored.
