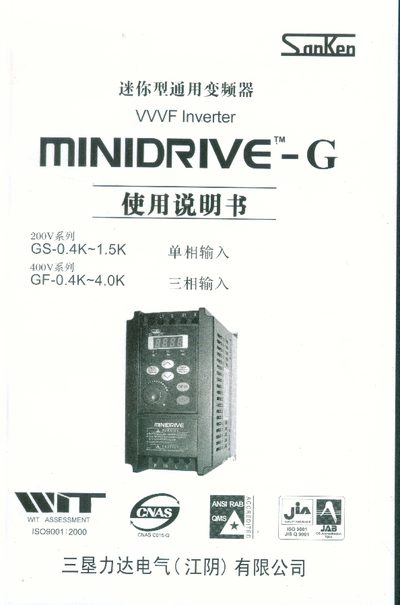

This manual introduces the safety precautions, product confirmation and precautions, installation, wiring, operation panel, operation, and other contents of SANKEN general type frequency inverter. Please read it carefully and strictly comply with it.
The manual begins with safety precautions, including proper grounding, secure mounting with screws, and the use of an MCCB sized to the inverter's capacity. It explains installation requirements, wiring diagrams, and the need to disconnect power before any inspection or maintenance.
Subsequent sections cover the operation panel, various operating modes, function setting methods, protection features, fault diagnosis, and detailed specifications such as rated voltage, carrier‑frequency limits, and physical dimensions of the inverter. This manual is written in Chinese.
| Rated voltage series | 200 V series |
|---|---|
| Output voltage for 200 V series | 220 V |
| Output voltage for 400 V series | 400 V |
| Carrier frequency limit | Cd051 ≤ 90 |
| Physical size options | GS‑0.4K, 0.75K; GF‑0.4K, 0.75K; GF‑1.5K, 2.2K, 4.0K |
Set the carrier frequency parameter Cd051 to 90 or lower before using the inverter.
When the input voltage is AC 400 V or higher, the rated current should be reduced according to the output power.
