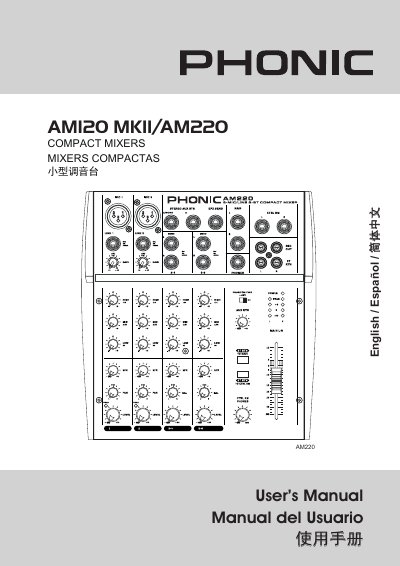

Introduces the features and characteristics of AM120 MKII/AM220 COMPACT MIXERS, including introduction, getting started, channel setup, making connections, controls and settings, specifications, applications, dimensions, block diagrams, etc.
This manual introduces the Phonic AM120 MKII and AM220 compact mixers, covering safety precautions, installation guidelines, and basic operation. It explains how to set up channels, make connections, and adjust controls for optimal performance.
Detailed sections provide technical specifications, typical applications, physical dimensions, and block diagrams. Warranty, service, and support information are also included, directing users to authorized Phonic distributors for parts and repairs.
| Main outputs | Unbalanced line‑level signal (balanced on AM220) |
|---|---|
| Level indicator | Dual 4‑segment level indicator |
No. Phonic does not release service manuals to consumers and advises users not to attempt self‑repair, as it voids the warranty.
Contact an authorized Phonic distributor in your country; distributor information is available on Phonic’s website.
