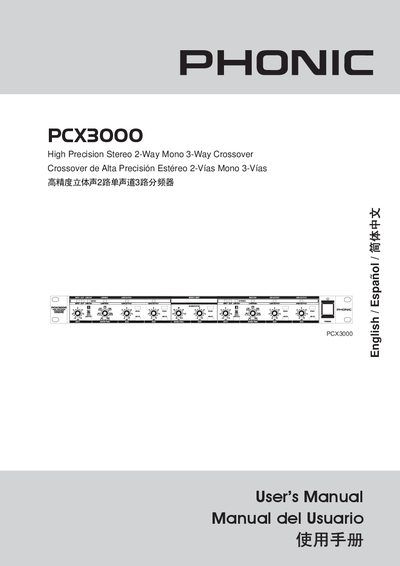

This manual describes the features and characteristics of the PCX3000 High Precision Stereo 2-Way Mono 3-Way Crossover, including quick setup, 2-Way Stereo Operation, 3-Way Stereo Operation, Application, etc.
The PCX3000 is a high‑precision 2‑way stereo and 3‑way mono audio crossover featuring Linkwitz‑Riley filters, separate subwoofer output, and servo‑balanced XLR connections. This manual provides safety instructions, quick‑setup steps, detailed front‑ and rear‑panel descriptions, and guidance for configuring crossover frequencies and output levels.
The guide also includes application tips, full technical specifications, wiring diagrams, and warranty information, helping users achieve optimal sound performance while ensuring safe and reliable operation.
| Audio Input Connectors | XLR |
|---|---|
| Input Impedance (Balanced) | >50 kΩ |
| Max Input Level | +22 dBu typical |
| Output Impedance (Balanced) | 60 Ω |
| Bandwidth | 20 Hz – 20 kHz, +0/‑0.5 dB |
| Crossover Filter Type | Linkwitz‑Riley, 24 dB/octave |
| THD & Noise | <0.04 % |
Press the Mode button on the rear of the unit; the stereo LED on the front will illuminate.
The input gain can be adjusted between –12 dB and +12 dB.
Activate the Low Cut (high‑pass) filter by pressing the Low Cut button, which is set at 25 Hz.
It uses a Linkwitz‑Riley filter with a 24 dB per octave slope.
