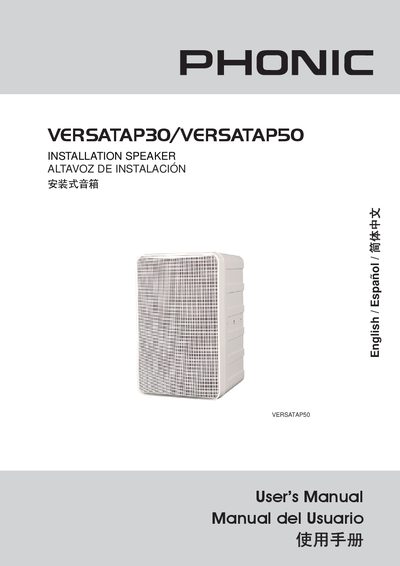

VERSATAP30/VERSATAP50 is an installation speaker that is suitable for various occasions and applications. This document provides instructions on installation and operation of the product, as well as detailed specifications and contents.
The Phonic Versatap30 and Versatap50 are compact, weather‑resistant speakers designed for clear sound in a variety of applications. Each unit includes a 100 V transformer with four tap positions and an 8 Ω bypass option. The guide explains how to mount the speakers using the supplied U‑mount or RK‑15 universal swivel brackets, and provides safety warnings to protect both the user and the equipment.
Important safety instructions cover electrical shock prevention, proper ventilation, and protection from moisture and heat sources. The manual also lists the technical specifications for both models, warranty information, and how to obtain service, replacement parts, and optional accessories through authorized Phonic distributors.
| Maximum Power Rating (Versatap30) | 30 watts (8 Ω) |
|---|---|
| Frequency Response (Versatap30) | 120 Hz – 20 kHz (+3 dB) |
| Frequency Response (Versatap50) | 120 Hz – 20 kHz (+3 dB) |
| Sensitivity (Versatap30) | 84 dB |
| Woofer Size (Versatap30) | 4" polycarbonate |
| Woofer Size (Versatap50) | 6.5" polycarbonate |
| 100 V Tap Positions (Versatap30) | 2, 4, 8, 16 W |
| Dimensions (Versatap30) | 7‑1/4" × 4‑1/2" × 4‑1/4" |
The Versatap30 is rated for a maximum of 30 watts into an 8 Ω load.
Contact an authorized Phonic distributor in your country; Phonic does not release service manuals to consumers.
