VIPer50B/BSP is a high voltage switching power supply control chip from Texas Instruments based on VIPower M0 technology, which contains an advanced PWM circuit and an optimized high voltage avalanche rugged vertical power MOSFET. Suitable for 50W offline power supply.
The VIPer50B/BSP is a 400 V, 3 A SMPS primary integrated circuit that combines a PWM controller with a high‑voltage avalanche‑rugged MOSFET on a single silicon chip. It targets off‑line power supplies up to 50 W and offers features such as adjustable switching frequency, soft‑start, burst‑mode standby, and low standby power consumption.

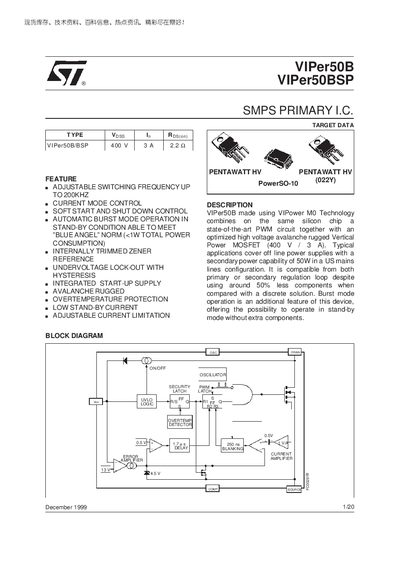

The datasheet details absolute maximum ratings, thermal data, pin functions, electrical characteristics, oscillator and error‑amplifier sections, as well as mechanical dimensions for the PowerSO‑10 package. It also includes ordering information and recommended component values for typical applications.
| Drain‑Source Voltage (Vds) | 400 V |
|---|---|
| Continuous Drain Current | 3 A |
| Power Dissipation (Tc = 25 °C) | 60 W |
| Adjustable Switching Frequency | up to 200 kHz |
| Standby Power Consumption | < 1 W |
The device is rated for a maximum drain‑source voltage of 400 V.
The switching frequency is adjustable up to 200 kHz.
In standby mode the module consumes less than 1 W of power.
