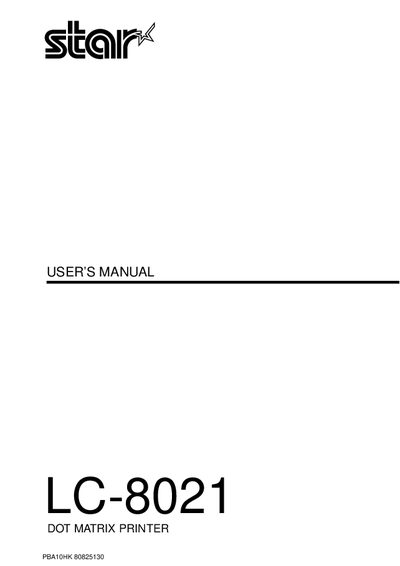

Star LC-8021 Dot Matrix Printer User Manual

About this manual

This manual provides step‑by‑step instructions for installing the LC‑8021 printer, including unpacking, connecting power and data cables, loading paper, and installing the ribbon cartridge. It also covers how to use the control panel, configure the Electronic DIP Switch (EDS) mode, and set up printing under MS‑DOS.

Additional sections describe optional accessories, troubleshooting procedures, technical specifications, interface pin‑outs, character sets, and printer control codes, helping users keep the printer running reliably.

What's inside

• Printer Setup
• Control Panel Operations
• Electronic DIP Switch (EDS) Mode
• MS‑DOS Printing Setup
• Paper Handling
• Optional Accessories
• Troubleshooting
• Specifications
• Interface Pin Outs
• Character Sets

Frequently asked questions

How do I set up the printer for MS‑DOS?

Refer to Chapter 4, which explains the steps for setting up printing with MS‑DOS.

How can I change the printer's font?

Use the control panel to select a font as described in Chapter 2.

What optional accessories are available for the LC‑8021?

The manual lists accessories such as the Serial Interface Unit (IS‑NP192) and the Serial‑to‑Parallel Interface Converter (SPC‑8K).
