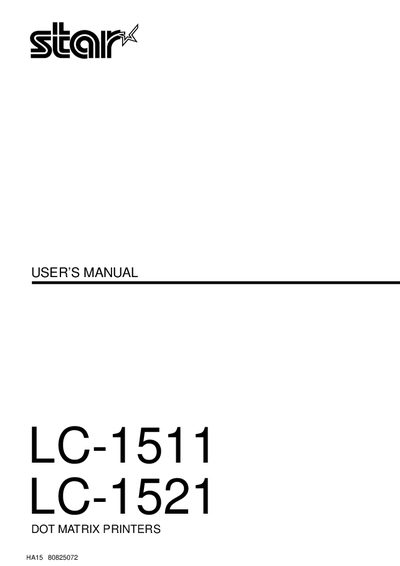

Star LC-1511 / LC-1521 Dot Matrix Printer User Manual

About this manual

This manual covers everything needed to install, configure, and maintain the Star LC-1511 and LC-1521 dot matrix printers. It includes step‑by‑step instructions for unpacking, connecting power and data cables, loading paper, and using the control panel and Electronic DIP Switch (EDS) mode.

Additional chapters describe driver setup for Windows 3.1, Windows 95, OS/2 Warp, and MS‑DOS, as well as paper handling, optional accessories, specifications, interface pin‑outs, character sets, and printer control codes. A troubleshooting appendix and contact information for technical support are also provided.

What's inside

• Printer Setup
• Control Panel Operations
• Using the EDS Mode
• User Setup Utility
• Using the Printer with Windows 3.1
• Using the Printer with Windows 95
• Using the Printer with OS/2 Warp
• Using the Printer with MS‑DOS
• Paper Handling
• Optional Accessories

Frequently asked questions

What should I do if the printer causes radio interference?

Use a shielded cable, re‑orient or relocate the receiving antenna, increase separation from the receiver, or connect the printer to a different circuit.
