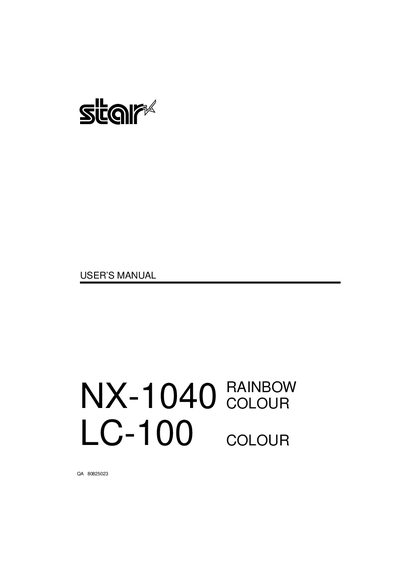

star NX-1040 RAINBOW COLOUR LC-100 COLOUR user manual

This manual introduces the NX-1040 LC-100 RAINBOW COLOUR COLOUR QA 80825023 product's use method, installation method and other information

Brand: Star Micronics
Category: Printer
Document type: User Manual
Language: English
Pages: 84
File format: PDF
File size: 1.3 MB
Published: 28 March, 2012
Updated: 01 October, 2023
Model: LC-100
MD5 checksum: AA5FF3B909061772456A49FA8034B014
PDF: star NX-1040 RAINBOW COLOUR LC-100 COLOUR user manual PDF

About this manual

The Star Micronics NX-1040 is a multi‑font, color printer designed for IBM/PC computers and compatible with Epson/IBM printer commands. It accepts single sheets, fanfold forms, multipart forms, and pre‑printed forms.

This manual covers unpacking, installation, paper loading, control‑panel functions, default EDS settings, troubleshooting, printer control commands, and reference specifications.

What's inside

Introduction
Setting up the Printer
Paper Installation and Use
Control Panel Operations
Default Settings – EDS mode
Troubleshooting
Printer Control Commands
Reference

Specifications

Interface connectors	Parallel and Serial

Frequently asked questions

What steps can I take if the printer causes radio interference?

Reorient or relocate the receiving antenna, increase the separation from the receiver, connect the printer to a different circuit, or consult a radio/TV technician.

How do I set up the printer for the first time?

Follow Chapter 2 – Setting up the Printer, which explains unpacking, placement, and connecting the interface cable.

What is the default settings mode called?

The printer uses the Electronic DIP Switch (EDS) mode for its default settings.
