LM39300/39301/39302 is a 3A low-voltage low-dropout regulator with low dropout voltage and high output current. It is suitable for applications such as PC add-in cards, high-efficiency linear power supplies, and multimedia and PC processor supplies.

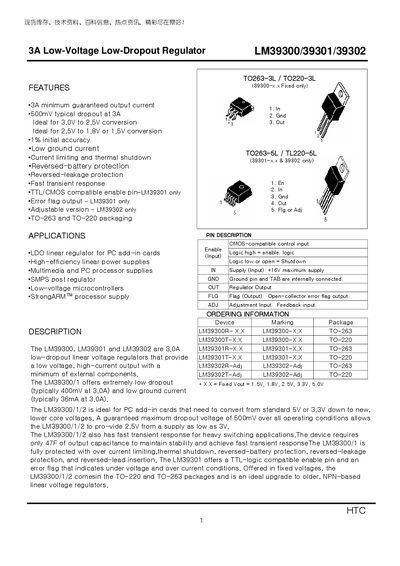

The LM39300, LM39301 and LM39302 are 3 A low‑dropout linear voltage regulators offering very low dropout (500 mV typical at full load) and low ground current (≈36 mA at 3 A). They are available in TO‑263‑3L, TO‑220‑3L and, for the adjustable versions, TO‑263‑5L/TO‑220‑5L packages. Features include 1 % initial accuracy, current limiting, thermal shutdown, reversed‑battery and reversed‑leakage protection, and for LM39301 an enable pin and error‑flag output.
The devices operate from a supply voltage of 2.25 V to 16 V, with a recommended minimum load current of 10 mA for proper regulation. Application notes cover thermal design, capacitor selection, and adjustable output configuration for the LM39302 version.
| Typical dropout voltage | 500 mV at 3 A |
|---|---|
| Maximum output current | 3 A |
| Ground current (typical) | 36 mA at 3 A |
| Input voltage range | 2.25 V to 16 V |
| Enable voltage (logic high) | 2.25 V |
| Package options | TO‑263‑3L, TO‑220‑3L (and TO‑263‑5L / TO‑220‑5L for adjustable versions) |
| Initial accuracy | 1 % |
The regulator has a typical dropout of 500 mV when delivering 3 A.
A minimum load current of 10 mA is necessary for proper regulation.
The devices are offered in TO‑263‑3L and TO‑220‑3L packages, with TO‑263‑5L and TO‑220‑5L for the adjustable versions.
Logic low (off) is 0.8 V and logic high (on) is 2.25 V.
