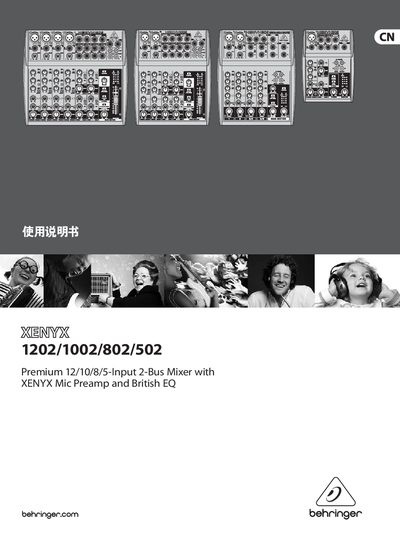

This document is the user manual for the BEHRINGER XENYX 1202/1002/802/502 series mixers, which provides information about the features, operation elements and interfaces, installation methods, and technical specifications of the mixers.
This manual explains safe handling, installation, and basic operation of the Behringer XENYX series mixers (1202, 1002, 802, 502). It includes safety warnings, grounding requirements, and warranty information to help users set up the console correctly.
The guide details each channel’s inputs and controls, such as balanced XLR mic inputs with +48 V phantom power, line inputs, EQ sections, low‑cut filters, FX Send/Return routing, pan, level and clip functions, as well as stereo and 2‑track outputs. Physical dimensions, weight, and performance specifications are also listed. This manual is written in Japanese.
| Dimensions (HxWxD) | 47 × 220 × 242 mm |
|---|---|
| Low‑cut filter | -18 dB/octave, -3 dB at 75 Hz |
| Warranty period | 1 year |
The low‑cut filter attenuates 18 dB per octave, reaching -3 dB at 75 Hz.
Behringer provides a one‑year warranty for the mixer.
