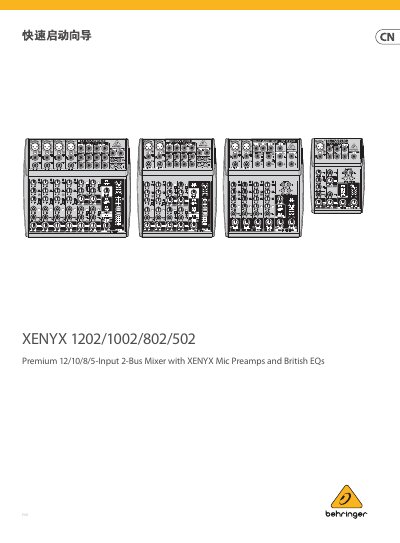

XENYX 1202/1002/802/502 Mixer Quick Start Guide
This guide provides essential safety information and recommended installation practices for the XENYX 1202/1002/802/502 mixer, including warnings about electric shock, proper grounding, and environmental restrictions. It also explains how to register the product online and obtain warranty support.
The document details the mixer’s front‑panel controls, input and output connections, gain and EQ settings, phantom power operation, and basic level‑setting procedures. Technical specifications such as frequency response, gain range, signal‑to‑noise ratio, power consumption and dimensions are listed for quick reference. This manual is written in Chinese.
XENYX 1202/1002/802/502 specifications
| Mic input frequency response | <10 Hz – 150 kHz –1 dB |
|---|---|
| Mic preamp gain range | +10 dB to +60 dB |
| Signal‑to‑noise ratio | 110 dB / 112 dB A‑weighted |
| THD+N | 0.005 % / 0.004 % |
| Power consumption | 20 W |
| Dimensions (H × W × D) | 1.9 × 9.5 × 8.7 in |
| Weight | 4.8 lb / 2.2 kg |
All XENYX 1202/1002/802/502 documents by type
The shortest path to a working setup, usually only a few pages.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I enable phantom power (+48 V) on the mixer?
Press the phantom power switch; the red +48 V LED will light when phantom power is active.
What is the correct way to set the input gain?
Turn the GAIN knob clockwise to increase input amplification; set it to the leftmost position when no signal is connected.
What is the low‑cut filter frequency and slope?
The low‑cut filter attenuates 18 dB per octave, reaching -3 dB at 75 Hz.
How long is the warranty for this mixer?
Behringer provides a one‑year warranty for the mixer.
