The AD9852 is a 300MHz complete DDS IC that features 12-bit output DACs and programmable rate and update clocks.

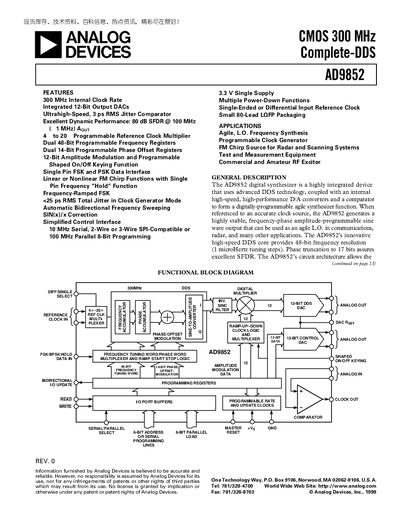

The AD9852 is a 300 MHz CMOS complete‑DDS device that integrates a 12‑bit DAC, high‑speed comparator, and programmable frequency/phase registers. This manual details its features, functional block diagram, and typical applications such as agile LO synthesis and radar chirp sources.
The document includes full electrical specifications, pin‑out tables, timing characteristics, ordering information, and mechanical dimensions for the 80‑lead LQFP package, enabling designers to implement the chip in their systems.
| Package | 80‑Lead LQFP |
|---|
It operates from a single 3.3 V supply.
The AD9852 is available in an 80‑lead LQFP package.
