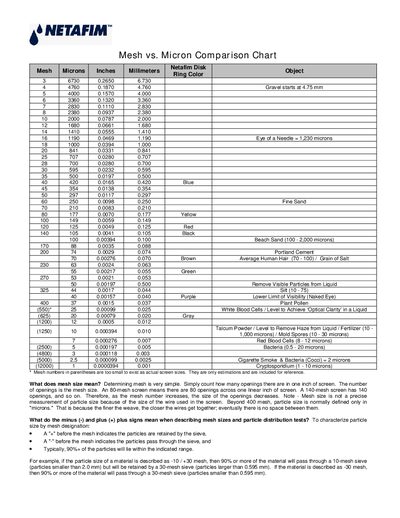

This document is a comparison chart of mesh and micron sizes, listing the corresponding relationship between different mesh sizes and microns. The chart provides reference information for different object sizes and colors.
This document provides a detailed comparison of mesh numbers, micron sizes, inches, millimeters, and typical particle colors for Netafim Disk screens. It lists a range of mesh sizes from 3 to 140, showing how the opening size decreases as the mesh number increases.
The chart also explains how to interpret mesh size terminology, including the meaning of plus (+) and minus (‑) signs that indicate whether particles are retained or pass through a sieve. This information helps users select the appropriate screen for specific filtration requirements.
| Mesh 80 openings per inch | 0.177 mm particle size (Yellow) |
|---|---|
| Mesh 140 openings per inch | 0.105 mm particle size (Black) |
| Mesh 3 openings per inch | 6.730 mm particle size |
Mesh size is the number of openings per linear inch of screen; a higher mesh number means smaller openings.
