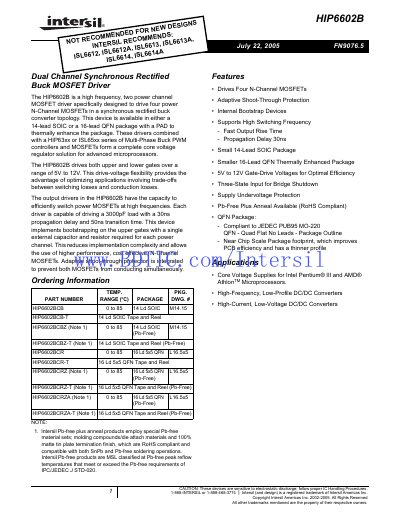

The HIP6602B is a high frequency, two power channel MOSFET driver specifically designed to drive four power N-Channel MOSFETs in a synchronous rectified buck converter topology.
The HIP6602B is a high‑frequency, dual‑channel MOSFET driver designed for synchronous‑rectified buck converters. It supports gate‑drive voltages from 5 V to 12 V and can drive a 3000 pF load with a 30 ns propagation delay.
The document provides absolute maximum ratings, electrical specifications, pin descriptions, typical application circuits and guidelines for bootstrap capacitor selection, power‑on reset behavior, and adaptive shoot‑through protection.
| Gate‑drive voltage range (PVCC) | 5 V to 12 V |
|---|---|
| Propagation delay | 30 ns |
The HIP6602B operates with a PVCC supply voltage between 5 V and 12 V.
The driver can handle a propagation delay of up to 30 ns.
