HA-2539 is a high gain bandwidth product from Intersil, with a very high slew rate and wide bandwidth. The product's gain bandwidth product reaches 600MHz, with a slew rate of 600V/µs, making it ideal for video and RF amplifier designs with a closed loop gain of 10 or greater. The product also has a ±10V swing, excellent AC parameters, and high open loop gain, making it very useful in high speed data acquisition systems.
The HA-2539 is a very high‑slew‑rate, wide‑bandwidth monolithic operational amplifier designed with Intersil's High Frequency Bipolar Dielectric Isolation process. It offers a 600 V/µs slew rate and 600 MHz gain‑bandwidth, making it suitable for video, RF, and high‑speed data‑acquisition circuits.

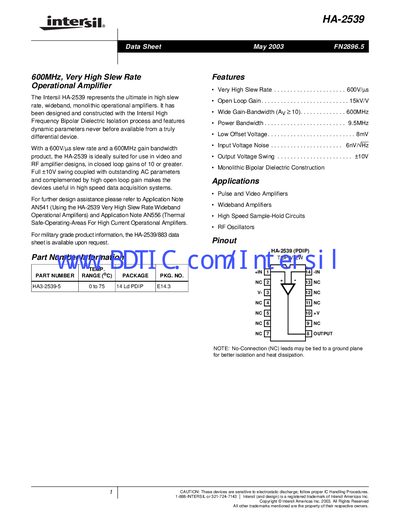

The datasheet lists absolute maximum ratings, electrical specifications, typical application circuits, and performance curves. It also includes package dimensions for the PDIP E14.3 form factor and detailed thermal information for reliable design.
| Slew Rate | 600 V/µs |
|---|---|
| Output Voltage Swing | +10 V |
The device provides a full output voltage swing of +10 V.
It is supplied in a dual‑in‑line plastic (PDIP) package, JEDEC type E14.3.
The HA-2539 has a slew rate of 600 V/µs.
