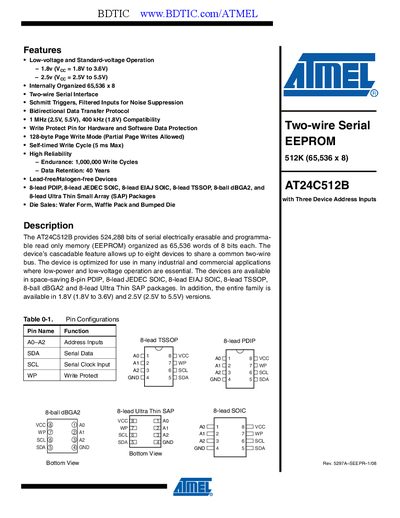

AT24C512B is a low-power, low-voltage operation serial electrically erasable and programmable read-only memory (EEPROM) provides 524,288 bits of storage space, organized as 65,536 8-bit words. The device supports 8 devices sharing a common 2-wire bus, and can be used in many industrial and commercial applications where low power and low voltage operation are essential. The device provides 8-pin PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-ball dBGA2 and 8-lead Ultra Thin SAP packages to meet the needs of different application scenarios.
The AT24C512B is a 512‑kilobit serial EEPROM offering low‑voltage operation (1.8 V to 5.5 V) and high reliability for industrial and commercial applications. It supports up to eight devices on a common two‑wire bus and is available in multiple compact packages such as 8‑lead PDIP, SOIC, TSSOP, and 8‑ball BGA.
Key specifications include a 1 MHz maximum clock rate, 5 ms write cycle time, 1 M write‑cycle endurance, and 40‑year data retention. Detailed electrical parameters, timing diagrams, and package dimensions are provided for designers.
| Memory Capacity | 524,288 bits (512 Kbits) |
|---|---|
| Operating Voltage (1.8 V version) | 1.8 V to 3.6 V |
| Operating Voltage (2.5 V version) | 2.5 V to 5.5 V |
| Endurance | 1,000,000 write cycles |
| Data Retention | 40 years |
The device operates from 1.8 V to 3.6 V in the 1.8 V version and from 2.5 V to 5.5 V in the 2.5 V version.
It is rated for up to 1,000,000 write cycles.
The EEPROM retains data for up to 40 years.
