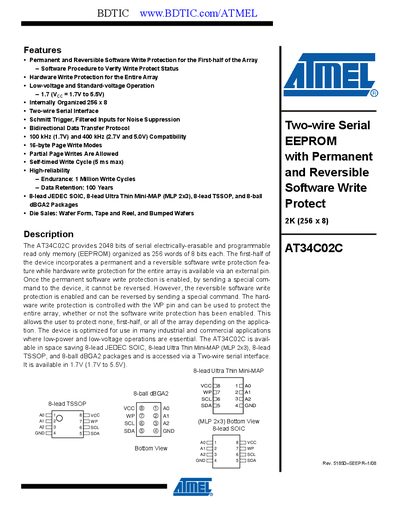

AT34C02C is a 2KB serial electrically erasable and programmable read only memory (EEPROM) manufactured by ATMEL, with permanent and reversible software write protection features, and entire array hardware write protection available via an external pin.
The AT34C02C provides 2048 bits of serial EEPROM organized as 256 words of 8 bits each. It operates from 1.7 V to 5.5 V and is offered in compact 8‑lead packages such as SOIC, Ultra Thin Mini‑MAP, TSSOP and 8‑ball dBGA2.
Key features include permanent and reversible software write‑protect for the first half of the array, hardware write‑protect for the entire array, a two‑wire serial interface, 100 kHz‑400 kHz clock rates, 16‑byte page writes, 1 M‑cycle endurance and 100‑year data retention.
| Supply Voltage | 1.7 V – 5.5 V |
|---|---|
| Write Cycle Time | 5 ms max |
| Data Retention | 100 years |
| Operating Temperature | -55 °C to +125 °C |
| Package Types | 8‑lead SOIC, Ultra Thin Mini‑MAP, TSSOP, 8‑ball dBGA2 |
The write cycle time is specified as 5 ms.
The device operates from 1.7 V up to 5.5 V.
