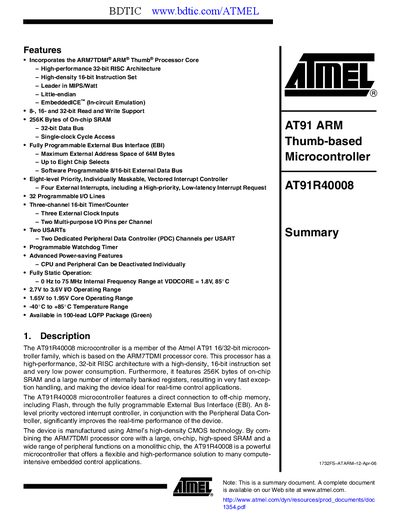

The AT91R40008 microcontroller is a member of the Atmel AT91 16/32-bit microcontroller family, which is based on the ARM7TDMI processor core. This processor has a high-performance, 32-bit RISC architecture with a high-density 16-bit instruction set. It supports 8-bit, 16-bit, and 32-bit read and write operations. The microcontroller also features 256K bytes of on-chip static random-access memory (SRAM), a fully programmable external bus interface (EBI) with a maximum external address space of 64M bytes, an eight-level priority, individually maskable, vectored interrupt controller, programmable I/O lines, a three-channel 16-bit timer/counter, two USARTs, and a programmable watchdog timer.
The AT91R40008 is a 32‑bit microcontroller built around an ARM7TDMI®/Thumb® core. It offers 256 KB of on‑chip SRAM, a fully programmable external bus interface, eight‑level priority interrupt controller and a range of peripherals including two USARTs, three 16‑bit timer/counters and 32 programmable I/O lines. The device operates from 0 Hz to 75 MHz with core and I/O voltage ranges of 1.65‑1.95 V and 2.7‑3.6 V respectively, and is specified for –40 °C to +85 °C.
The package is a 100‑lead green LQFP, supporting up to 64 MB of external address space. The datasheet includes pin descriptions, block diagrams, power‑supply details, reset behavior, emulation functions and full ordering information.
| Processor Core | ARM7TDMI® ARM® Thumb® |
|---|---|
| On‑chip SRAM | 256 KB |
| External Address Space | 64 MB |
| Core Frequency Range | 0 Hz to 75 MHz |
| I/O Voltage Range | 2.7 V to 3.6 V |
| Core Voltage Range | 1.65 V to 1.95 V |
| Operating Temperature | -40 °C to +85 °C |
| Package | 100‑lead LQFP (green) |
| Interrupt Controller | Eight‑level priority, vectored |
| USARTs | Two |
| Timer/Counter | Three 16‑bit channels |
| Programmable I/O Lines | 32 |
It uses the ARM7TDMI® ARM® Thumb® processor core.
The device includes 256 KB of on‑chip SRAM.
The AT91R40008 operates from –40 °C to +85 °C.
It is offered in a 100‑lead green LQFP package.
