AD9389 is a 800 MHz High Performance HDMI™/DVI Transmitter from Analog Devices, Inc. It is compatible with HDMI 1.1 and HDCP 1.1 standards, single 1.8 V power supply, supports video/audio inputs with 3.3 V tolerance, supports HDCP 1.1 with encrypted internal HDCP key storage, 80-lead LQFP package.

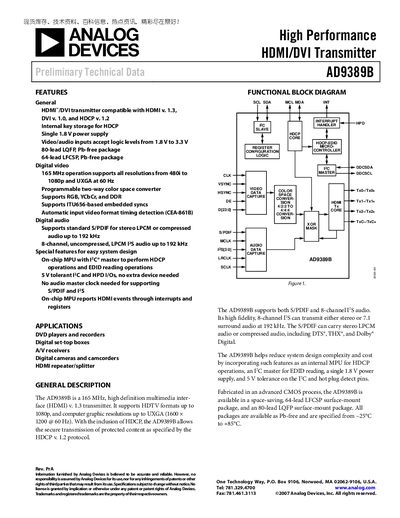

The AD9389B is a high‑performance HDMI/DVI transmitter that supports HDMI v1.3, DVI v1.0 and HDCP v1.2. It handles video formats from 480i up to 1080p and UXGA (1600 × 1200 @ 60 Hz), and provides digital audio via S/PDIF up to 192 kHz. Typical applications include DVD players, set‑top boxes, A/V receivers, digital cameras, camcorders and HDMI repeaters/splitters.
Key features include internal HDCP key storage, an on‑chip MPU with I²C master for HDCP and EDID handling, a single 1.8 V power supply, 5 V‑tolerant I²C and HPD pins, and no external audio master clock required. The device is offered in Pb‑free 64‑lead LFCSP and 80‑lead LQFP packages rated from –25 °C to +85 °C.
It supports all resolutions from 480i up to 1080p and UXGA (1600 × 1200) at 60 Hz.
Yes, it has internal key storage for HDCP 1.2 and an on‑chip MPU that handles HDCP operations via I²C.
