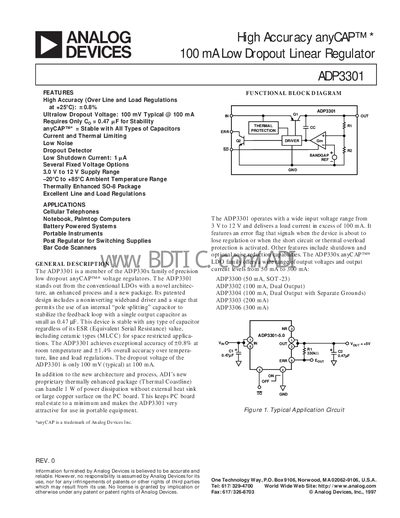

This document introduces the features and characteristics of the ADP3301 precision low dropout anyCAP voltage regulator
The ADP3301 is a precision low‑dropout (LDO) regulator from Analog Devices featuring anyCAP™ technology that allows stable operation with any type of output capacitor, even as low as 0.47 µF. It offers high accuracy (±0.8 % at 25 °C), ultralow dropout (100 mV typical at 100 mA), low shutdown current (1 pA) and integrated current and thermal limiting.
Designed for portable and battery‑powered equipment, the device operates from 3 V to 12 V input and supports multiple fixed output voltages. It includes an error flag, shutdown pin, and dropout detector for robust system monitoring. The thermally enhanced SO‑8 package provides a low 96 °C/W thermal resistance without requiring a heatsink.
| Output Voltage Range | 0.3 V to 12 V |
|---|---|
| Typical Dropout Voltage | 100 mV @ 100 mA |
| Ground Current (100 mA load) | 0.85 mA to 2 mA |
| Shutdown Threshold (ON) | 2.0 V |
| Thermal Resistance (SO‑8 package) | 96 °C/W |
The ADP3301 has a typical dropout voltage of 100 mV when delivering 100 mA.
