ADP120 is a CMOS linear regulator with a 100mA output current, low quiescent current, and low dropout voltage. It is suitable for applications such as mobile phones, digital cameras, and portable devices.
The ADP120 is a low‑quiescent, low‑dropout linear regulator that operates from 2.3 V to 5.5 V and delivers up to 100 mA of output current. It offers a very low quiescent current (11 pA) and shutdown current (<1 pA), making it ideal for battery‑powered portable equipment. The device is available in 16 fixed output voltage options and in two compact packages: a 5‑lead TSOT and a 4‑ball 0.4 mm pitch WLCSP.

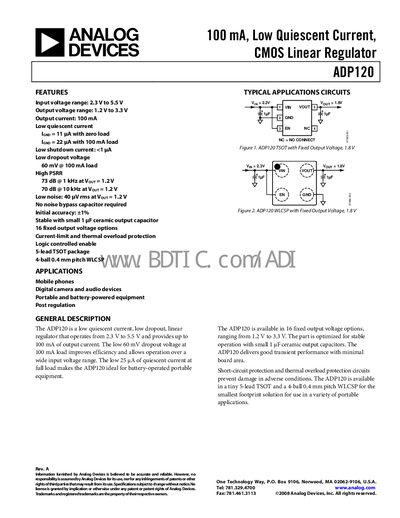

The datasheet provides detailed electrical specifications, typical performance curves, pin descriptions, thermal data, recommended capacitor selections, and an ordering guide. It also includes application circuits for mobile phones, digital cameras, and other portable devices, as well as guidance on PCB layout and ESD protection.
| Input voltage range | 2.3 V to 5.5 V |
|---|---|
| Maximum output current | 100 mA |
| Quiescent current (zero load) | 11 pA |
| Dropout voltage @ 100 mA | 60 mV |
| Power Supply Rejection Ratio (1 kHz) | 73 dB |
| Output noise @ 1.2 V | 40 pV rms |
The ADP120 can supply up to 100 mA of output current.
The dropout voltage is 60 mV when delivering 100 mA.
The ADP120 is offered in a 5‑lead TSOT package and a 4‑ball 0.4 mm pitch WLCSP.
The quiescent current is 11 pA with zero load.
