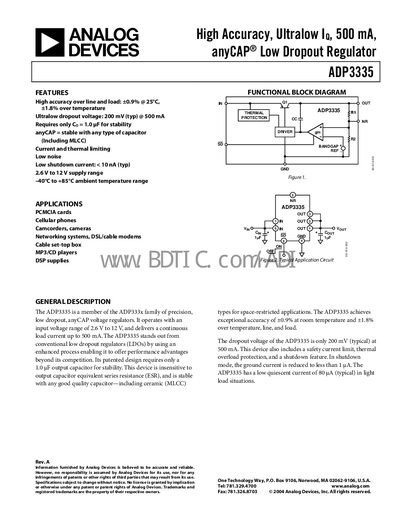

This product is a high precision, ultra-low IQ, 500mA anyCAP® low dropout regulator.
The ADP3335 is a high‑accuracy, ultra‑low dropout (LDO) regulator that operates from 2.6 V to 12 V and delivers up to 500 mA continuous load current. It features a typical dropout voltage of 200 mV at full load, low shutdown current (<10 nA), and low noise performance, making it suitable for space‑restricted applications such as PCMCIA cards, cellular phones, and networking equipment.
The document provides full electrical specifications, absolute maximum ratings, pin configuration, typical performance graphs, layout recommendations, and application guidance. It also includes a revision history, ordering information, and mechanical dimensions for both MSOP‑8 and LFCSP‑8 packages.
