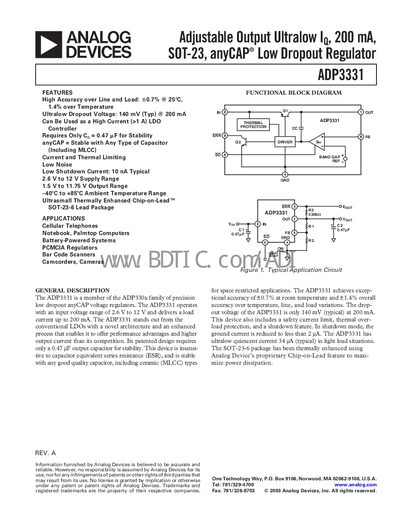

The ADP3331 is a high accuracy, low dropout, adjustable output, ultralow IQ, 200mA, SOT-23, anyCAP ® low dropout regulator.
The ADP3331 is a precision low‑dropout regulator with an input range of 2.6 V to 12 V and an adjustable output from 1.5 V to 11.75 V, delivering up to 200 mA. It offers ultralow dropout (140 mV typ. at 200 mA), low quiescent current, and a shutdown current of less than 10 nA.
The document includes detailed specifications, functional block diagrams, theory of operation, layout recommendations, and guidance for capacitor selection, thermal management, and higher‑current configurations. It also describes the patented Chip‑on‑Lead SOT‑23‑6 package that enhances thermal performance.
| Input Voltage Range | 2.6 V to 12 V |
|---|---|
| Output Voltage Range | 1.5 V to 11.75 V |
| Maximum Output Current | 200 mA |
| Typical Dropout Voltage | 140 mV @ 200 mA |
| Shutdown Current | 10 nA typical |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | SOT‑23‑6 Chip‑on‑Lead |
The typical dropout voltage is 140 mV at a load current of 200 mA.
It operates with an input voltage from 2.6 V up to 12 V.
In shutdown mode the quiescent current is less than 10 nA typical.
The device is supplied in a thermally enhanced Chip‑on‑Lead SOT‑23‑6 package.
