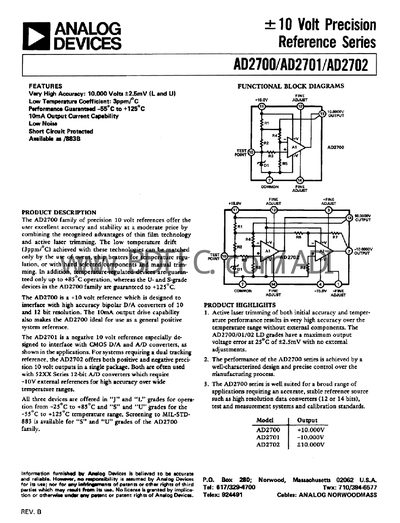

The AD2700 family provides high‑accuracy 10 V references with low temperature drift and up to 10 mA output current, available in positive (AD2700), negative (AD2701) and dual (AD2702) versions. Active laser trimming and thin‑film technology give a typical output voltage error of ±2.5 mV at 25 °C without external adjustments.
The document includes absolute maximum ratings, electrical specifications, package options, and example circuits for using the references with D/A converters. It also lists pin assignments for the 14‑pin dual‑in‑line ceramic package and provides application notes for unipolar and bipolar operation.
| Output Voltage (AD2700) | +10.000 V |
|---|---|
| Output Voltage (AD2701) | -10.000 V |
| Output Voltage (AD2702) | +10.000 V |
| Output Current Capability | 10 mA |
| Temperature Coefficient | 3 ppm/°C |
| Output Voltage Error @25°C (LD grade) | ±2.5 mV |
| Power Dissipation @+25°C (AD2700/AD2701) | 300 mW |
| Power Dissipation @+25°C (AD2702) | 450 mW |
| Package | 14‑Pin Dual‑In‑Line Ceramic (DH‑14C) |
The AD2700 provides a +10.000 V output.
The series can source up to 10 mA of output current.
It can be combined with an inverting op‑amp and an R‑2R ladder to generate bipolar output voltages.
