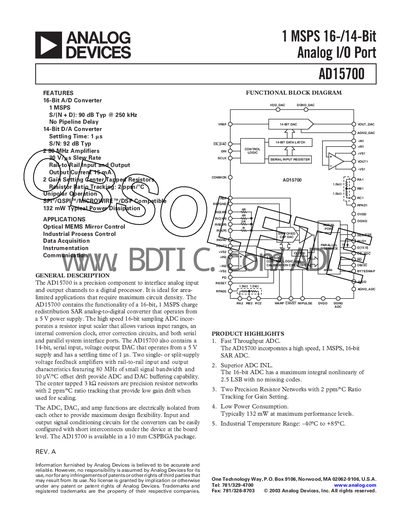

AD15700 is a 16-/14-bit analog I/O port, with 1MSPS conversion rate, 2ppm/℃ gain setting tracking, suitable for optical MEMS mirror control, industrial process control, data acquisition and other applications.
The AD15700 combines a 16‑bit, 1 MSPS charge‑redistribution SAR ADC and a 14‑bit serial‑input DAC with two precision amplifiers. It offers high‑speed sampling, low power (typically 132 mW), and an industrial temperature range of –40 °C to +85 °C, making it suitable for optical MEMS mirror control, industrial process control, data acquisition and instrumentation.
The device is supplied in a 144‑lead CSPBGA (BC‑144) package and provides both parallel and serial interfaces. Detailed electrical and timing specifications are provided for the ADC, DAC and amplifiers, including resolution, bandwidth, power supplies, and timing parameters for various operating modes.
| ADC Resolution | 16 Bits |
|---|---|
| Maximum Sampling Rate | 1 MSPS (1000 kSPS) in Warp mode |
| Typical Power Consumption | 132 mW |
| Operating Temperature Range | -40 °C to +85 °C |
| Supply Voltage (AVDD/DVDD) | 4.75 V – 5.25 V |
The AD15700 can sample at up to 1 MSPS (1000 kSPS) in Warp mode.
Typical power consumption is 132 mW at maximum performance levels.
It operates from –40 °C to +85 °C.
The device is available in a 144‑lead CSPBGA (BC‑144) package.
