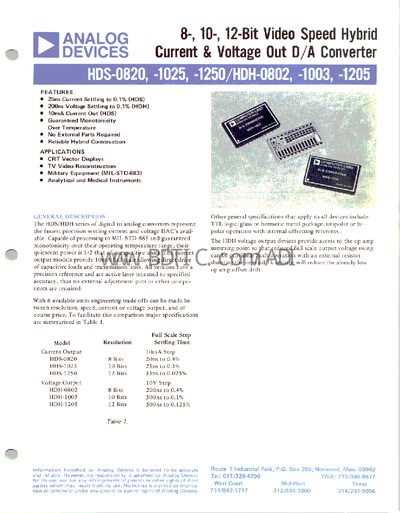

The HDS/HDH series digital‑to‑analog converters are high‑speed, precision devices used in applications such as CRT vector displays, TV video reconstruction, military equipment, and analytical or medical instruments. They offer both current and voltage output options with guaranteed monotonicity and low power consumption.
The datasheet lists detailed specifications for each model, including resolution, settling time, output range, power requirements, temperature limits, and pin assignments. It also includes circuit diagrams, outline dimensions, and ordering information for the HDS‑0820, HDS‑1025, HDS‑1250, HDH‑0802, HDH‑1003, and HDH‑1205 devices.
| Resolution (HDS‑1250) | 12 bits |
|---|---|
| Current Output | 10 mA |
| Maximum Power Consumption | 50 mW |
| Operating Temperature (Metal Case) | -55 °C to +125 °C |
They are used in CRT vector displays, TV video reconstruction, military equipment (MIL‑STD‑883), and analytical and medical instruments.
The HDS‑1250 provides 12‑bit resolution.
The HDS series can output up to 10 mA of current.
Metal‑case devices operate from –55 °C up to +125 °C.
