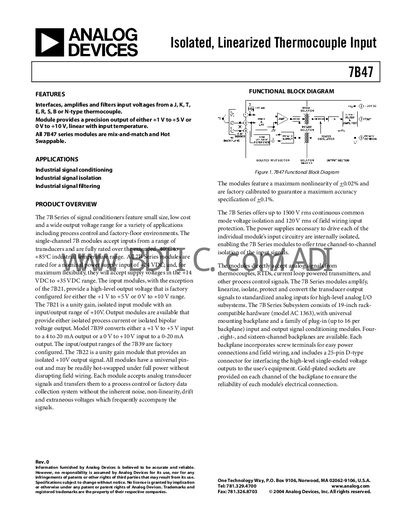

The 7B47 series modules are Analog Devices' isolated, linearized thermocouple input modules that interface, amplify, and filter input voltages from a J, K, T, E, R, S, B or N-type thermocouple, providing a precision output of either +1 V to +5 V or 0 V to +10 V, linear with input temperature.
The 7B47 is a single‑channel signal‑conditioning module that interfaces, amplifies and filters input voltages from J, K, T, E, R, S, B or N‑type thermocouples. It provides an isolated, precision output of either +1 V to +5 V or 0 V to +10 V, linear with temperature, and includes built‑in cold‑junction compensation.
The module is hot‑swappable, accepts a +14 VDC to +35 VDC supply, and offers up to 1500 V rms continuous common‑mode isolation with 120 V rms input protection. Mechanical dimensions are 42.24 mm × 53.6 mm × 14.3 mm, weight 60 g, and it operates from –40 °C to +85 °C.
| Output Voltage Range | +1 V to +5 V or 0 V to +10 V |
|---|---|
| Typical Accuracy (Span) | +0.15 % Span |
| Power Supply Voltage Range | +14 VDC to +35 VDC |
| Common‑Mode Isolation | 1500 V rms continuous |
| Input Protection Voltage | 120 V rms line voltage |
| Mechanical Dimensions | 42.24 mm × 53.6 mm × 14.3 mm |
| Weight | 60 g |
| Operating Temperature Range | -40 °C to +85 °C |
| Bandwidth | 10 Hz to 100 kHz |
It can be configured for either a +1 V to +5 V output or a 0 V to +10 V output.
The module offers up to 1500 V rms continuous common‑mode isolation.
It operates from a +14 VDC to +35 VDC supply.
