MAT03 is a low noise, matched dual PNP transistor from Analog Devices that features low offset voltage, low noise, high gain, high gain bandwidth, tight gain matching and excellent logarithmic conformance, making it an excellent choice for demanding preamplifier applications.
The MAT03 dual monolithic PNP transistor offers excellent parametric matching, low offset voltage (100 µV max) and very low noise (1 nV/√Hz at 1 kHz). It is suited for high‑frequency preamplifiers, current mirrors and other precision analog circuits.

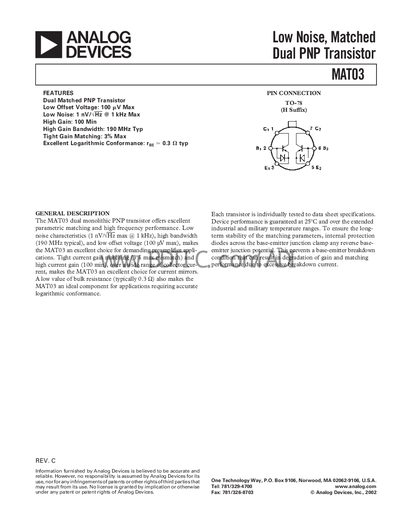

The document provides full electrical characteristics, absolute maximum ratings, typical performance graphs, a TO‑78 package outline, ordering information and SPICE/SABER model parameters for circuit simulation.
| Current Gain (hFE) Minimum | 100 |
|---|---|
| Gain Bandwidth | 190 MHz (typ) |
| Collector‑Emitter Voltage (BVcgo) | 36 V |
The MAT03 is supplied in a TO‑78 metal‑can package.
The minimum current gain is 100.
