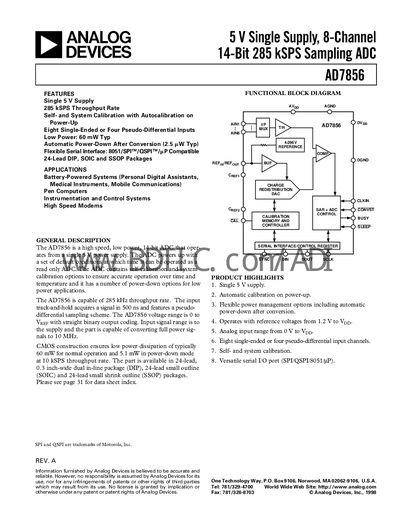

The AD7856 is a high-speed, low-power, 14-bit ADC that operates from a single 5 V power supply. The ADC powers up with a set of default conditions at which time it can be operated.
The AD7856 is a 14‑bit, 285 kSPS analog‑to‑digital converter that operates from a single 5 V supply. It offers eight single‑ended or four pseudo‑differential input channels, low power consumption (≈60 mW typical) and automatic power‑down after conversion.
The document provides detailed specifications, timing diagrams, pin descriptions, absolute maximum ratings, calibration procedures and interface options (8051/SPI/QSPI/µP compatible). It also includes ordering information and application hints for battery‑powered and high‑speed systems.
| Resolution | 14 Bits |
|---|---|
| Throughput Rate | 285 kSPS |
| Supply Voltage | Single 5 V |
| Power Consumption (normal operation) | ≈60 mW typical |
| Analog Input Channels | 8 single‑ended or 4 pseudo‑differential |
The AD7856 can sample at up to 285 kSPS.
It provides eight single‑ended inputs or four pseudo‑differential input pairs.
The device operates from a single 5 V supply.
Typical power consumption is about 60 mW.
