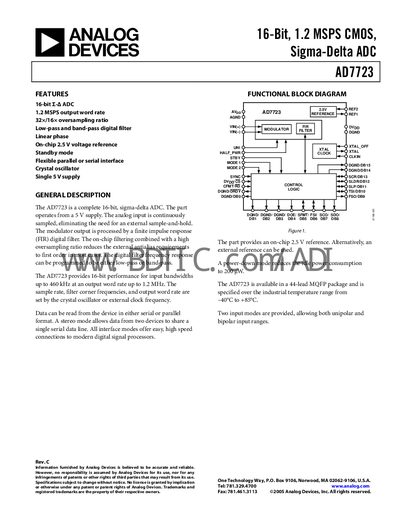

The AD7723 is a complete 16-bit, sigma-delta ADC with a 1.2 MSPS output word rate and a 32×/16× oversampling ratio. It features low-pass and band-pass digital filters, linear phase, on-chip 2.5V voltage reference, standby mode, flexible parallel or serial interface, and more.
The AD7723 is a complete 16‑bit sigma‑delta analog‑to‑digital converter that operates from a single 5 V supply. It continuously samples the analog input, eliminating the need for an external sample‑and‑hold, and uses an on‑chip FIR digital filter with selectable oversampling ratios to achieve high performance.
Key features include a 1.2 MSPS output word rate, flexible parallel or serial data interfaces (including a stereo mode), an on‑chip 2.5 V reference (or external reference option), and operation over an industrial temperature range of –40 °C to +85 °C. The device is offered in a 44‑lead MQFP package.
| Resolution | 16 bits |
|---|---|
| Maximum output word rate | 1.2 MSPS |
| Supply voltage | 5 V ±5 % |
| On‑chip reference voltage | 2.5 V |
| Operating temperature range | –40 °C to +85 °C |
| Signal‑to‑Noise Ratio (typical) | 87 dB |
The AD7723 can output data at up to 1.2 MSPS.
It operates from a 5 V supply with a ±5 % tolerance.
The device is specified for –40 °C to +85 °C.
Yes, it includes an internal 2.5 V reference, with external reference options available.
