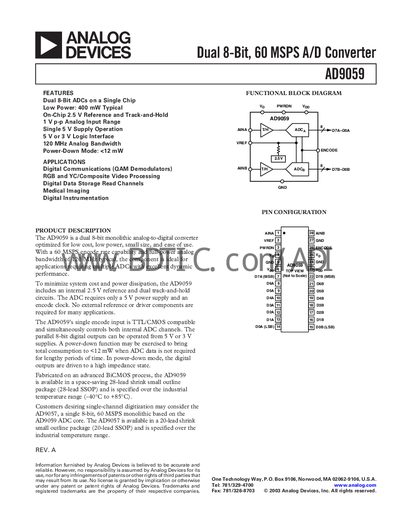

The AD9059 is a dual 8-bit monolithic analog-to-digital converter optimized for low cost, low power, small size, and ease of use. With a 60 MSPS encode rate capability and full-power analog bandwidth of 120 MHz typical, the component is ideal for applications requiring multiple ADCs with excellent dynamic performance.
The AD9059 is a dual 8‑bit analog‑to‑digital converter optimized for low cost, low power, and small size. It operates from a single 5 V supply, includes an on‑chip 2.5 V reference and track‑and‑hold, and supports both 5 V and 3 V logic interfaces. Typical power consumption is 400 mW, with a power‑down mode below 12 mW.
Designed for high‑performance receiver, video digitizer, and instrumentation applications, the device offers a 120 MHz analog bandwidth and up to 60 MSPS conversion rate. It is supplied in a 28‑lead shrink small‑outline package (SSOP) and qualified for an industrial temperature range of –40 °C to +85 °C.
| Resolution | 8 bits |
|---|---|
| Maximum conversion rate | 60 MSPS |
| Typical power dissipation | 400 mW |
| Power‑down dissipation | <12 mW |
| Analog bandwidth | 120 MHz |
The AD9059 can operate at up to 60 MSPS conversion rate.
Typical power consumption is 400 mW.
Digital inputs and outputs can be powered from either 5 V or 3 V logic levels.
The AD9059 provides a 120 MHz analog bandwidth.
