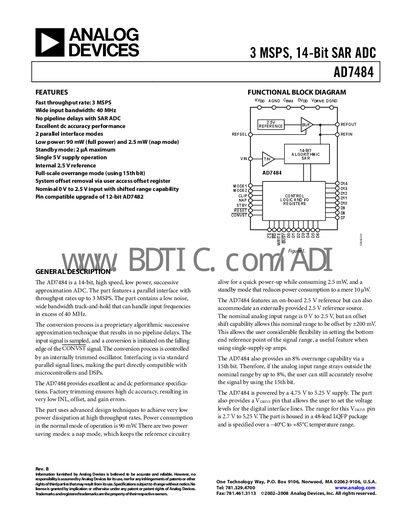

AD7484 is a 3MSPS, 14-bit SAR ADC with high throughput rate, wide input bandwidth, no pipeline delays, high DC accuracy, low power, single 5V supply, internal 2.5V reference, full-scale overrange mode, system offset removal, 0V to 2.5V input, and shifted range capability
The AD7484 is a high‑speed, low‑power 14‑bit successive‑approximation ADC offering up to 3 MSPS throughput. It features a wide 40 MHz input bandwidth, internal 2.5 V reference, and flexible input range with offset capability. Power modes include normal (90 mW), nap (2.5 mW) and standby (10 µW).
The device is supplied from a 4.75‑5.25 V rail, uses a parallel interface with configurable logic levels, and is housed in a 48‑lead LQFP package. Detailed specifications cover dynamic performance, absolute maximum ratings, pin functions, timing characteristics, and ordering information.
| Throughput Rate (Parallel Mode 1) | 3 MSPS |
|---|---|
| Resolution | 14 bits |
| Normal Mode Power Consumption | 90 mW |
| Supply Voltage | 4.75 V to 5.25 V |
| Input Voltage Range (nominal) | 0 V to 2.5 V |
| Input Offset Capability | +200 mV |
| Full‑Scale Overrange | 8 % (15th bit) |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 48‑lead LQFP |
The normal mode power consumption is 90 mW.
It can convert at a throughput rate of up to 3 MSPS in parallel mode.
The conversion time is 300 ns.
The nominal input range is 0 V to 2.5 V, with an optional offset of +200 mV.
