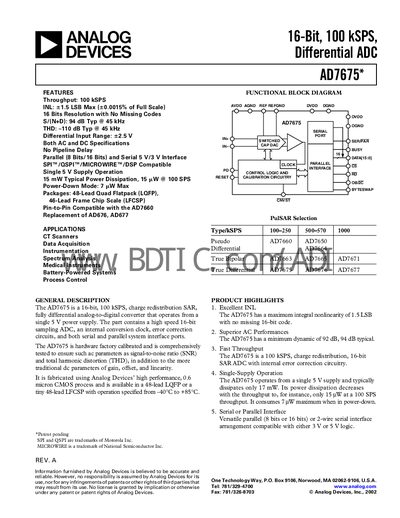

AD7675 is a 16-bit, 100 kSPS, differential ADC produced by Analog Devices.
The AD7675 is a fully differential 16‑bit analog‑to‑digital converter that operates from a single 5 V supply. It offers a 100 kSPS throughput, low power consumption (≈17 mW at full speed) and a range of serial and parallel interfaces.
The device is supplied in 48‑lead LQFP and LFCSP packages and includes factory calibration, ESD protection, and extensive timing specifications for both master and slave serial modes.
| Resolution | 16 Bits |
|---|---|
| Maximum Throughput | 100 kSPS |
| Typical Power Dissipation (100 kSPS) | 17 mW |
| Power‑Down Consumption | 7 µW |
| Differential Input Range | ±2.5 V |
| Total Harmonic Distortion (45 kHz) | -110 dB (typ) |
| Integral Nonlinearity (INL) | ±1.5 LSB |
| Missing Codes | None (16‑bit) |
The AD7675 can sample at up to 100 kSPS.
It operates from a single 5 V power supply.
In power‑down mode the device consumes about 7 µW.
The converter provides 16‑bit resolution.
