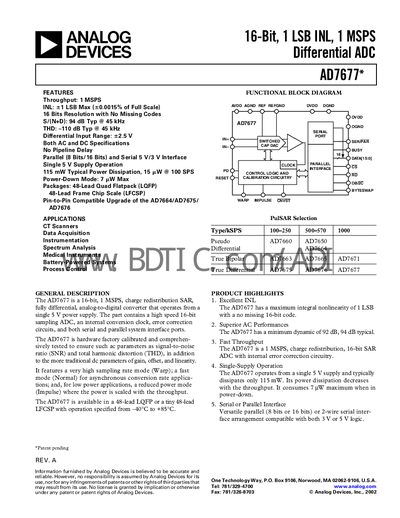

This document describes the features and characteristics of Analog Devices' AD7677 product, including sampling rate, 16-bit resolution, differential input range, interface type, and power supply voltage.
The AD7677 is a 16‑bit, 1 MSPS charge‑redistribution SAR ADC that operates from a single 5 V supply. It offers both parallel (8‑bit/16‑bit) and 2‑wire serial interfaces, selectable speed modes (Warp, Normal, Impulse), and low power consumption down to 7 µW in power‑down.
The device is supplied in 48‑lead LQFP or LFCSP packages and is specified for operation from –40 °C to +85 °C. Detailed specifications include resolution, INL, SNR, THD, power dissipation, and timing parameters for both serial and parallel modes.
| Resolution | 16 Bits |
|---|---|
| Maximum Throughput | 1 MSPS |
| Power Dissipation (typical, 1 MSPS) | 115 mW |
| Power‑Down Consumption | 7 µW |
| Supply Voltage | 5 V single supply |
| Differential Input Range | +2.5 V |
| Integral Non‑Linearity (INL) | ±1 LSB |
| Signal‑to‑Noise Ratio (typical) | 94 dB @ 45 kHz |
| Total Harmonic Distortion (typical) | -110 dB @ 45 kHz |
The AD7677 can sample at up to 1 MSPS in Warp mode.
Typical power dissipation is 115 mW at 1 MSPS.
Yes, it operates from a single 5 V supply.
