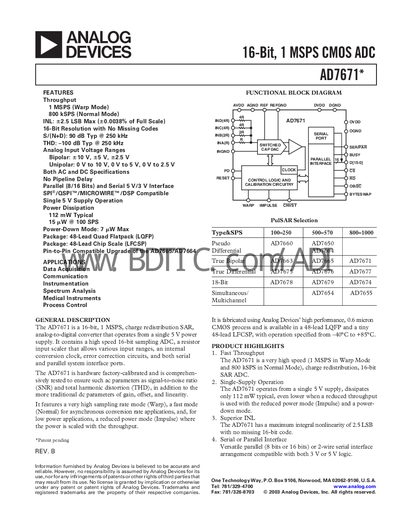

The AD7671 is a 16-bit, 1 MSPS CMOS analog-to-digital converter. It features high precision, low power consumption, multiple input voltage ranges, and parallel and serial interfaces.
The AD7671 is a 16‑bit, charge‑redistribution SAR analog‑to‑digital converter that operates from a single 5 V supply. It offers a high‑speed 1 MSPS throughput in Warp mode and 800 kSPS in Normal mode, with selectable input voltage ranges (bipolar ±10 V, ±5 V, ±2.5 V; unipolar 0‑10 V, 0‑5 V, 0‑25 V) and both parallel and serial interfaces.
Available in 48‑lead LQFP and 48‑lead LFCSP packages, the device is rated from –40 °C to +85 °C and is suited for communication, instrumentation, spectrum analysis, medical instruments, and process‑control applications.
| Resolution | 16 Bits |
|---|---|
| Throughput (Warp Mode) | 1 MSPS |
| Throughput (Normal Mode) | 800 kSPS |
| Typical Power Dissipation | 112 mW |
| Bipolar Input Voltage Range | +10 V, +5 V, +2.5 V |
The AD7671 can sample at up to 1 MSPS in Warp mode (and 800 kSPS in Normal mode).
The device operates from a single 5 V supply (AVDD, DVDD 5 V, OVDD 2.7‑5.25 V).
Typical power dissipation is 112 mW, with lower consumption in reduced‑throughput modes.
